MATRIX MPS-3206 DC Power Supply
Compact single-output DC bench power supply with 0–32 V output voltage, 0–6 A output current, LED display, and basic protection functions for laboratory and education use.
Output Voltage
0–32 V
Output Current
0–6 A
Output Power
Up to 192 W
Outputs
1 channel
Display
4-digit LED
Resolution
10 mV / 1 mA
Overview
The MATRIX MPS-3206 is a compact single-output DC bench power supply designed for electronics laboratories, education, repair work, and general bench testing. It provides adjustable voltage and current output, digital LED display, output control, and protection features suitable for daily engineering use.

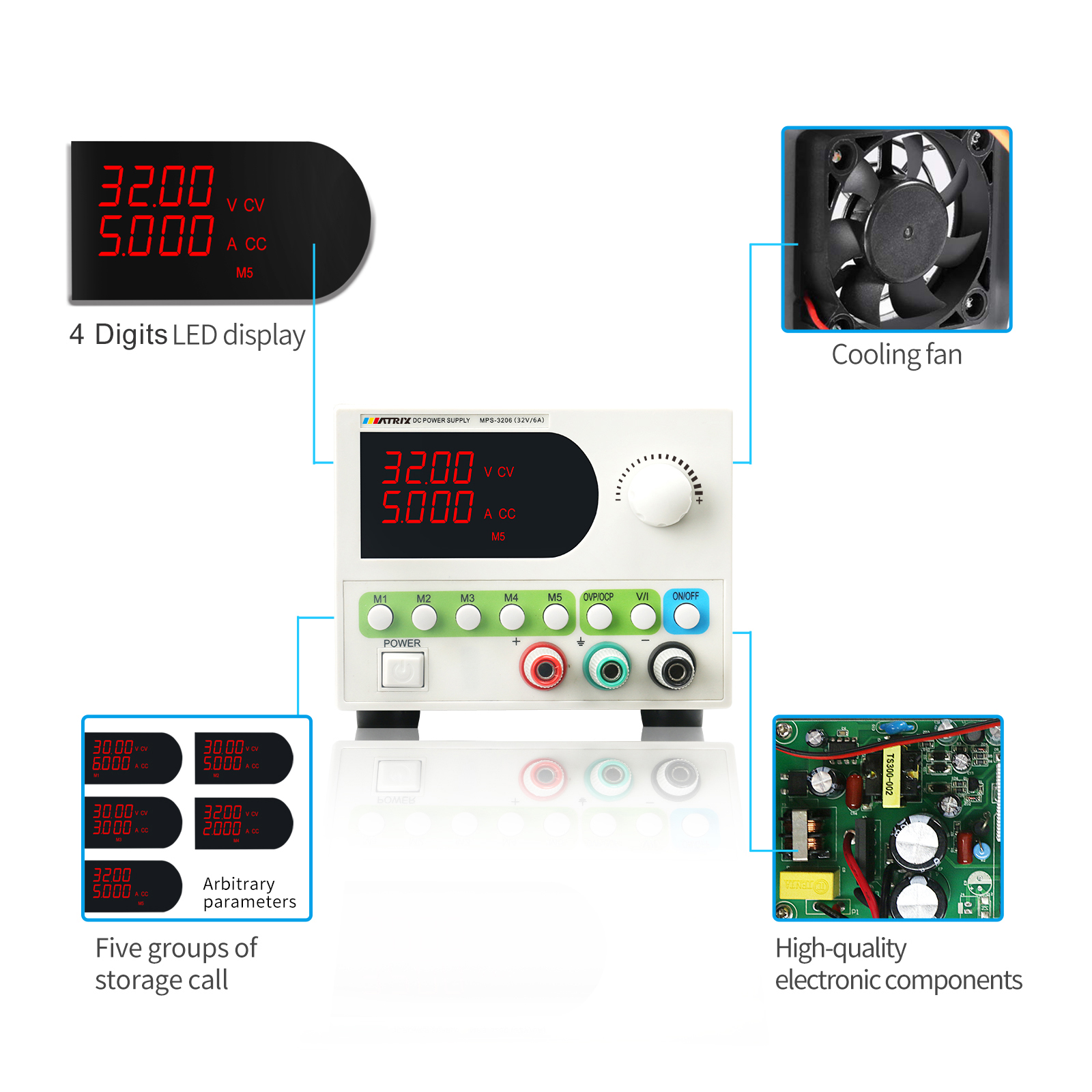

Key Features
- Single-output DC bench power supply
- Adjustable output voltage from 0 to 32 V
- Adjustable output current from 0 to 6 A
- Up to 192 W output power
- 4-digit LED voltage and current display
- Voltage and current setting resolution down to 10 mV and 1 mA
- OVP and OCP protection functions
- Output on/off control
- Compact bench-top design
- Suitable for education laboratories and electronics testing
Specifications
| Output Voltage | 0–32 V |
|---|---|
| Output Current | 0–6 A |
| Output Power | Up to 192 W |
| Number of Outputs | 1 output |
| Display | 4-digit LED display |
| Setting Resolution | 10 mV / 1 mA |
| Ripple | 10 mVrms / 5 mArms |
| Input Voltage | 110 VAC / 220 VAC |
| Protection | OVP, OCP |
| Application | Education lab, electronics repair, bench testing, production test |
Applications
Suitable for electronics education laboratories, circuit testing, repair benches, production test setups, and general DC power supply applications.
Downloads & Documents
Accessories
Included Accessories
- Power cord
- User manual
- Test leads
Optional Accessories
- Banana test leads
- Alligator clip leads
- Rack or bench accessories
- Calibration certificate
