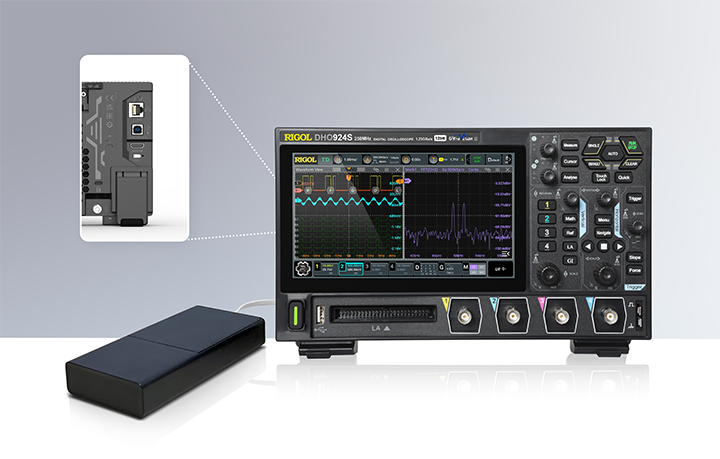

RIGOL DHO900 Series Digital Oscilloscope
Compact 12-bit digital oscilloscope with up to 250 MHz bandwidth, 4 analog channels, 16 digital channels support, and advanced waveform analysis features.
Resolution
12-bit
Bandwidth
Up to 250 MHz
Analog Channels
4 channels
Digital Channels
16 channels
Sample Rate
Up to 1.25 GSa/s
Memory Depth
Up to 50 Mpts
Overview
The RIGOL DHO900 Series is a compact high-performance economical digital oscilloscope designed for education laboratories, R&D, embedded system debugging, and general waveform analysis. It provides 12-bit vertical resolution, low noise performance, up to 50 Mpts memory depth, and a high waveform capture rate for efficient signal observation and debugging.
Key Features
- 12-bit vertical resolution
- Up to 250 MHz analog bandwidth
- 4 analog channels
- 16 digital channels support
- Up to 1.25 GSa/s real-time sample rate
- Up to 50 Mpts memory depth
- Up to 1,000,000 wfms/s waveform capture rate in UltraAcquire mode
- Low noise front-end design for small signal observation
- Supports serial bus analysis and waveform search functions

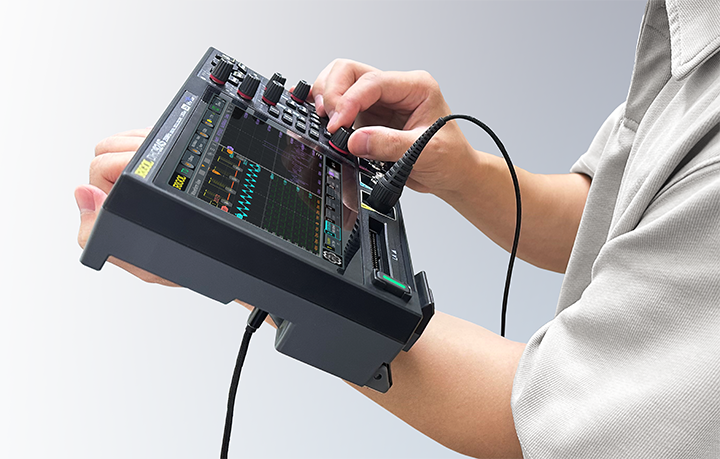

- Compact design suitable for education and research laboratories
Specifications
| Resolution | 12-bit |
|---|---|
| Analog Bandwidth | Up to 250 MHz |
| Analog Channels | 4 channels |
| Digital Channels | 16 channels, logic probe required |
| Real-time Sample Rate | Up to 1.25 GSa/s |
| Memory Depth | Up to 50 Mpts |
| Waveform Capture Rate | Up to 1,000,000 wfms/s in UltraAcquire mode |
| Vertical Sensitivity | 200 µV/div to 10 V/div |
| Display | 7-inch capacitive touchscreen |
| Application | Education lab, embedded debugging, R&D, waveform analysis |
Applications
Suitable for electronics education laboratories, embedded system debugging, power electronics waveform analysis, and general R&D measurement applications.
Downloads & Documents
Accessories
Included Accessories
- Passive probes
- Power cord
- USB cable
- Quick guide
- Calibration certificate
Optional Accessories
- Logic analyzer probe
- Rack mount kit
- High-voltage differential probe
- Current probe
- Serial bus analysis options
