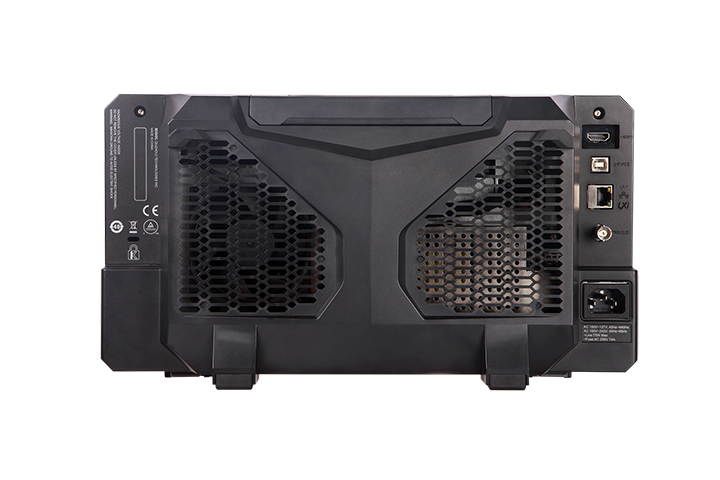

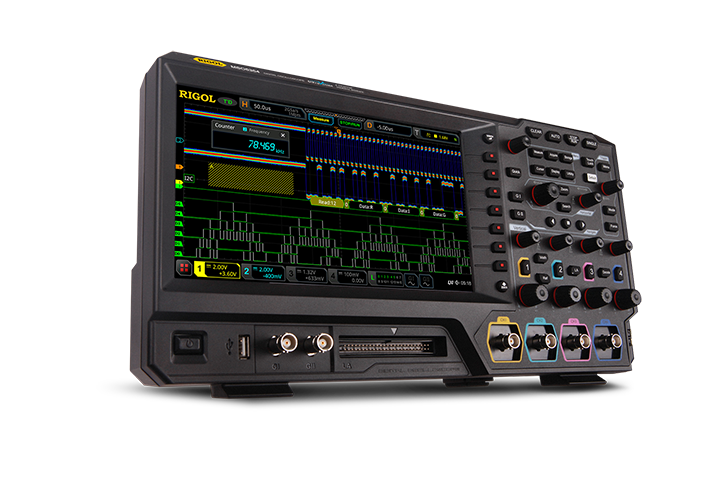

RIGOL MSO5000 Series Digital Oscilloscope
High-performance mixed signal oscilloscope based on RIGOL UltraVision II technology with up to 350 MHz bandwidth, up to 8 GSa/s real-time sample rate, and integrated multi-instrument functions.
Bandwidth
70 MHz to 350 MHz
Analog Channels
2 or 4 channels
Digital Channels
16 channels optional
Sample Rate
Up to 8 GSa/s
Memory Depth
Up to 100 Mpts
Display
9-inch touchscreen
Overview
The RIGOL MSO5000 Series is a high-performance economical mixed signal oscilloscope designed with RIGOL UltraVision II technology. It integrates multiple instruments into one platform, including oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, counter, and protocol analyzer. The series is suitable for R&D, education, embedded systems, serial bus analysis, and power electronics testing.
Key Features
- Based on RIGOL UltraVision II technology
- Analog bandwidth models from 70 MHz to 350 MHz
- 2 or 4 analog channel models available

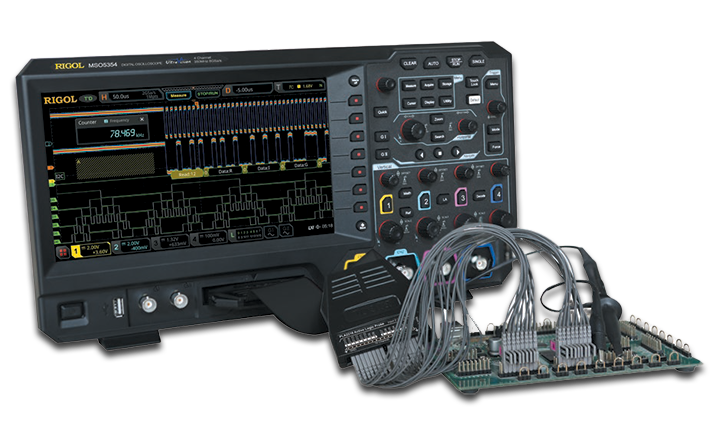

- 16 digital channel logic analysis support
- Up to 8 GSa/s real-time sample rate
- Up to 100 Mpts memory depth
- High waveform capture rate over 500,000 wfm/s
- 9-inch multi-touch capacitive display
- Integrated oscilloscope, logic analyzer, spectrum analyzer, AWG, DVM, counter, and protocol analyzer
- Supports serial protocol trigger and decode functions
Specifications
| Analog Bandwidth | 70 MHz, 100 MHz, 200 MHz, 350 MHz models |
|---|---|
| Analog Channels | 2 or 4 channels |
| Digital Channels | 16 channels, logic probe required |
| Real-time Sample Rate | Up to 8 GSa/s |
| Memory Depth | Up to 100 Mpts |
| Waveform Capture Rate | Over 500,000 wfm/s |
| Display | 9-inch multi-touch capacitive screen |
| Integrated Instruments | Oscilloscope, logic analyzer, spectrum analyzer, AWG, DVM, counter, protocol analyzer |
| Technology Platform | RIGOL UltraVision II |
| Application | R&D, education lab, embedded debugging, serial bus analysis, power electronics |
Applications
Suitable for advanced education laboratories, embedded system development, serial bus debugging, power electronics testing, RF signal observation, and general R&D measurement applications.
Downloads & Documents
Accessories
Included Accessories
- Passive probes
- Power cord
- USB cable
- Quick guide
- Calibration certificate
Optional Accessories
- Logic analyzer probe
- Bandwidth upgrade options
- Serial bus analysis options
- Power analysis option
- High-voltage differential probe
- Current probe
- Rack mount kit
